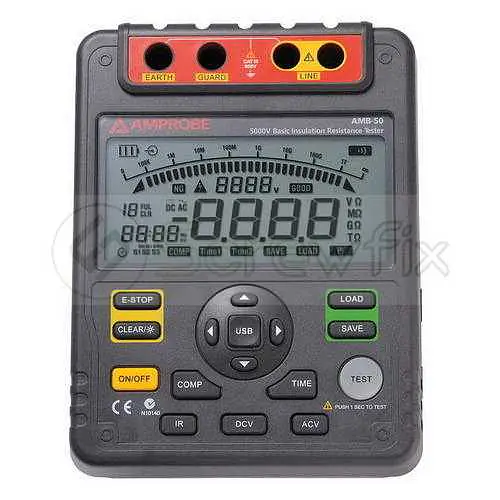

Amprobe AMB-50 Industrial High-Voltage Insulation Tester

Description

Features:

* Amprobe AMB-50 Industrial High-Voltage Insulation Tester is one of the best tools to check the insulation on any electrical devices, motors, wire cables, transformers, generators, & heavy-duty electrical devices

* Ideal for all industrial electrical testing conditions

* Option to select the for low & high voltage checking (high-5000V; low-500/1000/2500)

* Measure insulation resistance up to 1T Î©

* Can select programmable timer (10s to 30 min)

* Device discharges automatically after the completion of test measurement

* Diagnostic tools

* Polarization index (PI)

* Dielectric absorption ratio (DAR)

* Comparison feature to set pass/fail thresholds for quick measurement and verification

* Dual power source €“ receptacle or batteries

* Built in internal memory storing 18 measurements

* Windows compatible PC software & USB communications port

Specifications Overview:

Insulation resistance	0.5 MO †’ 20 GO, 2 MO †’ 40 GO, 5 MO â†’ 100 MO, 100 MO †’ 1000 GO
Test voltage and step voltage display range	0 V†’ 5000 V
Current display range	0 mA †’ 1.2 mA
Dielectric absorption ratio (DAR)	0 †’ 9.99
Polarization index (PI)	0 †’ 9.99
Dielectric discharge test (DD)	0 †’ 9.99
Leakage current display range	1 mA †’ 1.2 mA
External voltage measurement	30 V †’ 600 V
Capacitance measurement	€“
Download PC interface	€¢
Memory size	18 Measurements

Display (LCD):	1999 counts. Analog bar graph.
Operating temperature:	-10°C~40°C (14°F ~104°F )
Storage temperature:	-20°C ~60°C (-4 °F~152°F )
Relative humidity:	< 85% @ -10°C ~40°C below; < 90% @ 0°C ~40°C :
Battery type:	8pcs X 1.5V (LR14) batteries or power adaptor (input voltage 230V, 50/60Hz, 75mA, input DC14V, 1.0A). Power adaptor is not included.
Storage environment:	-20°C to 60°C, 0 to 70% R.H. with battery removed from meter.
