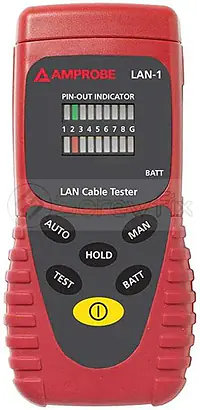

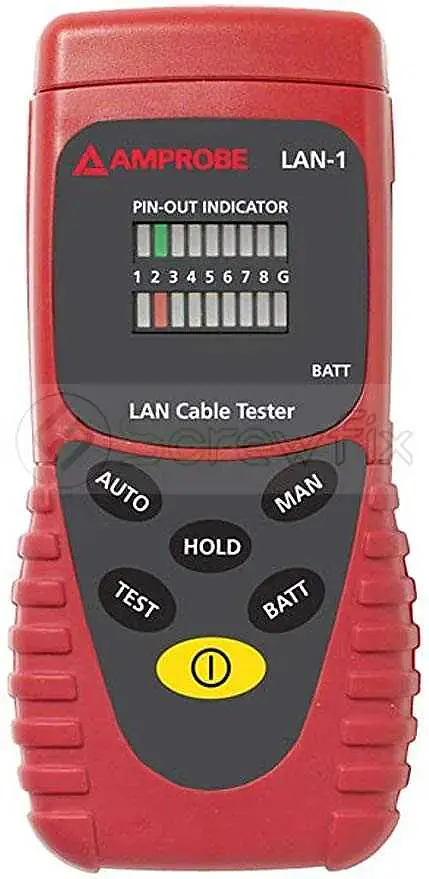

Amprobe LAN-1 LAN Cable Tester with LED Display
Regular price
₹15,444.00
Amprobe LAN-1 LAN Cable Tester with LED Display
Regular price
₹15,444.00
DESCRIPTION
Features:
* Amprobe LAN-1 LAN Cable Tester with LED Display to check for open, closed, short, or incorrect wire connections in any given LAN
* Test pin configuration suffices for the following types of cables
- 10/100 base -T cable
- 10 base-2 cable
- RJ45 modular cables
- AT T 258A cable
- EIA/TIA 568A/568B cables
- Token ring cable
* Check & validate for any open, connectivity, shorts, or miswiring connections
* Use Remote Termination Module to check patch panels or the installed cable network on the wall plate
* Technicians can perform both loopback & remote testing
* Enabled with buzzer to shout-out when incorrect or error conditions are identified
* A pair of LED lights for source & test indication
Specifications Overview:
| Cable types tested | 10/100 base-T; 10 base-2; RJ45; AT T 258A; EIA / TIA 568A/568B; Token Ring |
| Continuity maximum length | > 300 meters |
| Connector types | RJ45, BNC |
| Display | 18 LEDs: 9 red and 9 green, 9 LEDs on remote module |
| Battery | Standard 9-volt battery, NEDA 1604A, JIS 006P, IEC 6F22 |
| Low battery indicator | The LED indicator will not turn on when BATT button is pushed |
| Operating Environment | 0 to 40 °C (32 to 104 °F), 10 to 70% RH |
