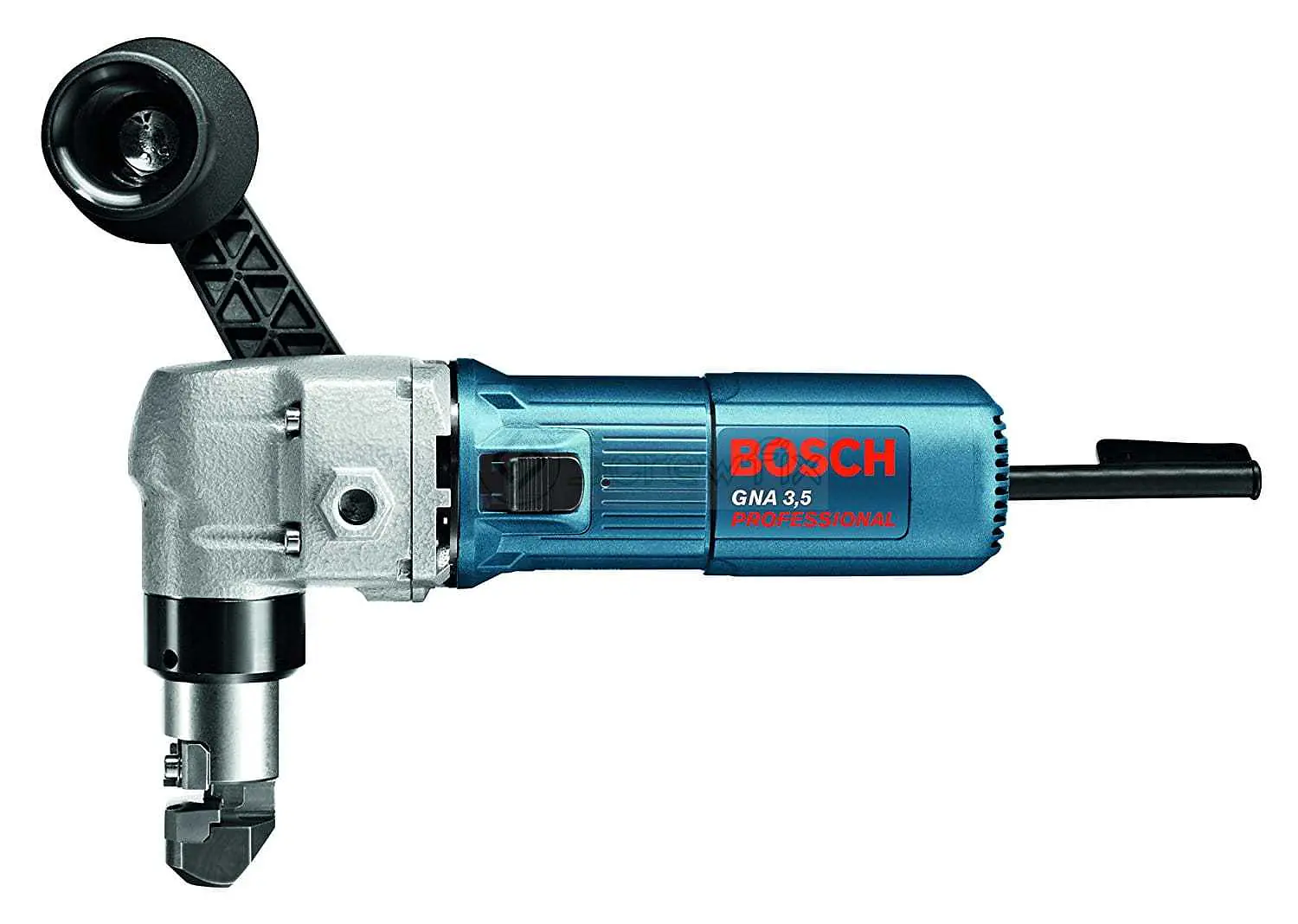

Bosch GNA 3,5 Nibbler
Regular price
₹128,000.00
Bosch GNA 3,5 Nibbler
Regular price
₹128,000.00
DESCRIPTION
- Die plate holder can be set to sheet metal thickness, enabling vibration-free work
- Long lifetime of punch and die plate leads to high cutting performance
- Die plate replaceable; punch can be sharpened
- Cut-off carbon brushes
- Good handling, also for left-handers
Specification Overview
| Material that can be processed | Steel up to 400 N/mm ² at 3.5 mm |
| Cutting track width | 6 mm |
| Pre-drilling for interior cut-outs | 41 mm |
| Smallest radius | 70 mm |
| Stroke rate under load | 670 spm |
| Stroke rate at no load | 1,000 spm |
| Weight | 3.5 kg |
| Length | 292 mm |
| Height | 117 mm |
| Cutting capacity in steel (400 N/mm ²), max. | 3.5 mm |
| Cutting capacity in steel (600 N/mm ²), max. | 2.4 mm |
| Cutting capacity in steel (800 N/mm ²), max. | 1.6 mm |
| Cutting capacity in aluminium (200 N/mm ²), max. | 4 mm |
| Electric specifications | |
|---|---|
| Rated power input | 620 W |
| Power output | 340 W |
| Vibration emission value ah | 9 m/s ² |
| Uncertainty K | 1.5 m/s |
