C10FCE2-Compound Saw
Regular price
₹19,266.00
C10FCE2-Compound Saw
Regular price
₹19,266.00
DESCRIPTION
Features:

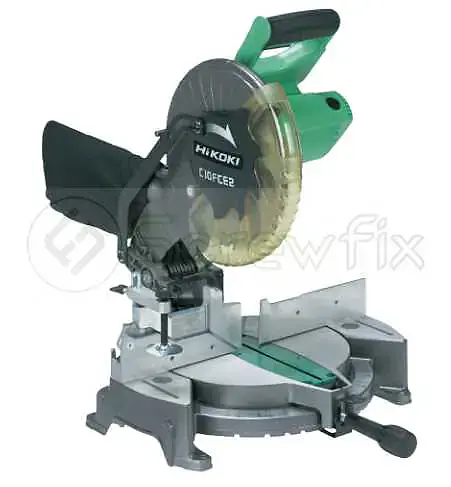

* C10FCE2 - is used for making perfect bevel and angle cuts in wood. It is commonly called cutting machine or simply a miter saw.
* Weighs around 11.2Kg
* Thumb actuated miter for easy & quick adjustments
* Soft-grip handle
* Chip deflector throws away the excess wood while working
* Sub-fence supports to cut bulk stock
Specifications Overview:
Capacity:
| Blade Dia. | 255mm (10") |
|---|---|
| (H x W) Cross Cut 0 º | 59 x 144mm or 89 x 101mm (2-5/16 x 5-21/32 or 3-1/2 x 3-31/32") |
| (H x W) Miter Cut 45 º | 59 x 102mm or 89 x 70mm (2-5/16 x 4 or 3-1/2 x 2-3/4") |
| (H x W) Miter Cut 52 º | 59 x 89mm or 89 x 54mm (2-5/16 x 3-1/2 or 3-1/2 x 2-1/8") |
| (H x W) Bevel Cut 45 º | 41 x 144mm (1-5/8 x 5-21/32") |
| Compound Mter 45 º and Beve 45 º | 41 x 102mm (1-5/8 x 4") |
| Miter Angle: | Right | 0 – 52 º |
|---|---|---|
| Left | 0 – 52 º | |
| Bevel Angle | Left | 0 – 45 º |
| Positive Angle Stop | 0, 15, 22.5, 31.6 and 45º | |
|---|---|---|
| Power Input | 1,520W | |
| No Load Speed | 5,000/min. | |
| Dimensions | 460 x 628 x 561mm (18-1/8 x 24-3/4 x 22-3/32") | |
| Weight | 11.9kg (26.2 lbs.) | |
| Standard Accessories | Blade, Dust Bag, Vise Assy, Sub Fence,Wrenches | |
