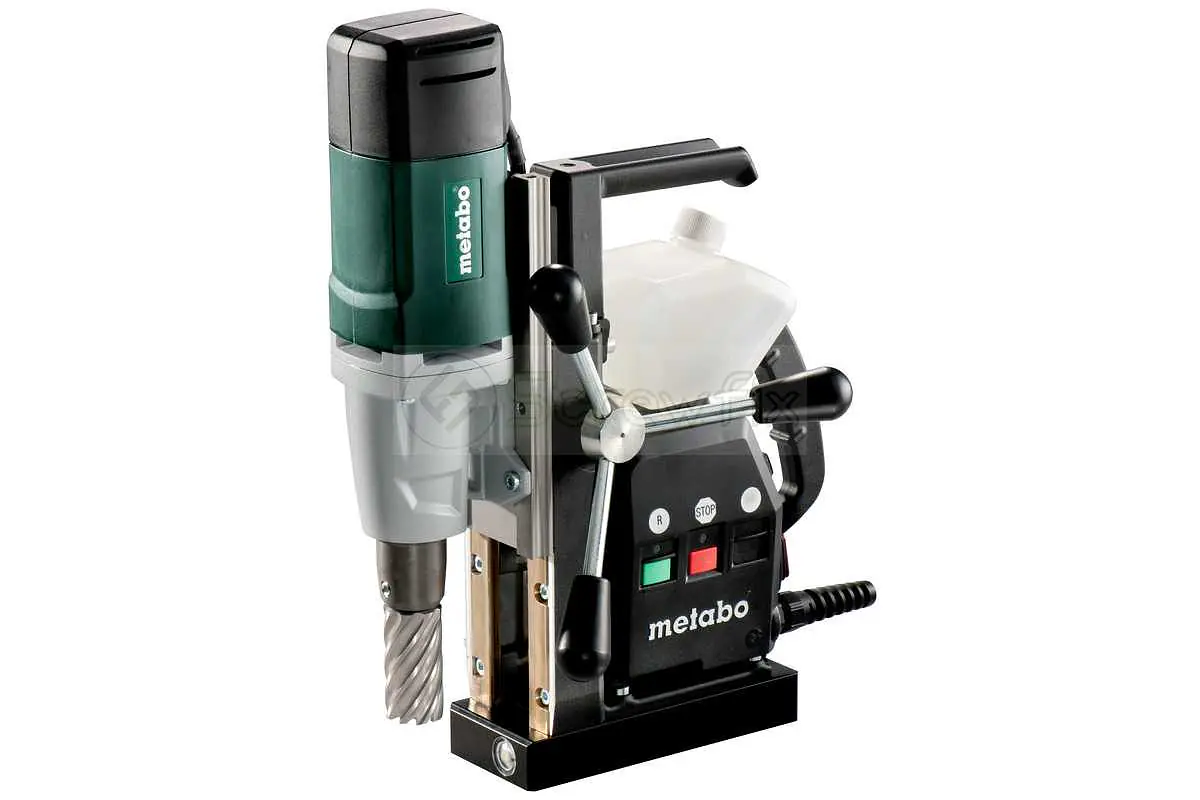

Metabo MAG 32 - Magnetic Core Drill Unit
Regular price
₹114,611.00
Metabo MAG 32 - Magnetic Core Drill Unit
Regular price
₹114,611.00
DESCRIPTION
Features:
* Metabo MAG 32 Magnetic Core Drill Unit can be used to perform: core drills, spiral drills, countersinks
* Strong Magnetic Base supports for both vertical surfaces & overhead drilling operations
* Sturdy Metabo marathon moto with internal wiring system extends life of the device
* LED light to illuminate the working space/object during poor-lit or dark working areas
* Protective circuit enables the motor to start-off only if the magnet is activated
* Tool change is facilitated with Slide Lock mechanism
* Resistant mains cable (5 m) with rubber shroud
Specifications Overview:
| Input Power | 1000W |
| Output Power | 520W |
| Max. drill-Ø with core drill | 32mm |
| Max. drill-Ø with spiral drill | 13mm |
| Maximum drilling depth | 50mm |
| No-load speed | 700rpm |
| Revolutions at rated load | 450rpm |
| Bit retainer | Weldon shaft 19mm |
| Weight | 11.9Kg |
| Cable Length | 5m |
| Torque | 50Nm |
| Max. depth of feed | 160mm |
| Max. magnetic holding force | 12250N |
| Dimensions of the magnet base | 90 x 189mm |
| Height carriage lowest position | 343mm |
| Height carriage topmost position | 490mm |
Vibration:
| Drilling in metal | 2.5 m/s² |
| Uncertainty of measurement K | 1.5 m/s² |
Noise Emission:
| Sound Pressure Level | 85 dB(A) |
| Sound Power Level (LwA) | 98 dB(A) |
| Uncertainty of measurement K | 3 dB(A) |
