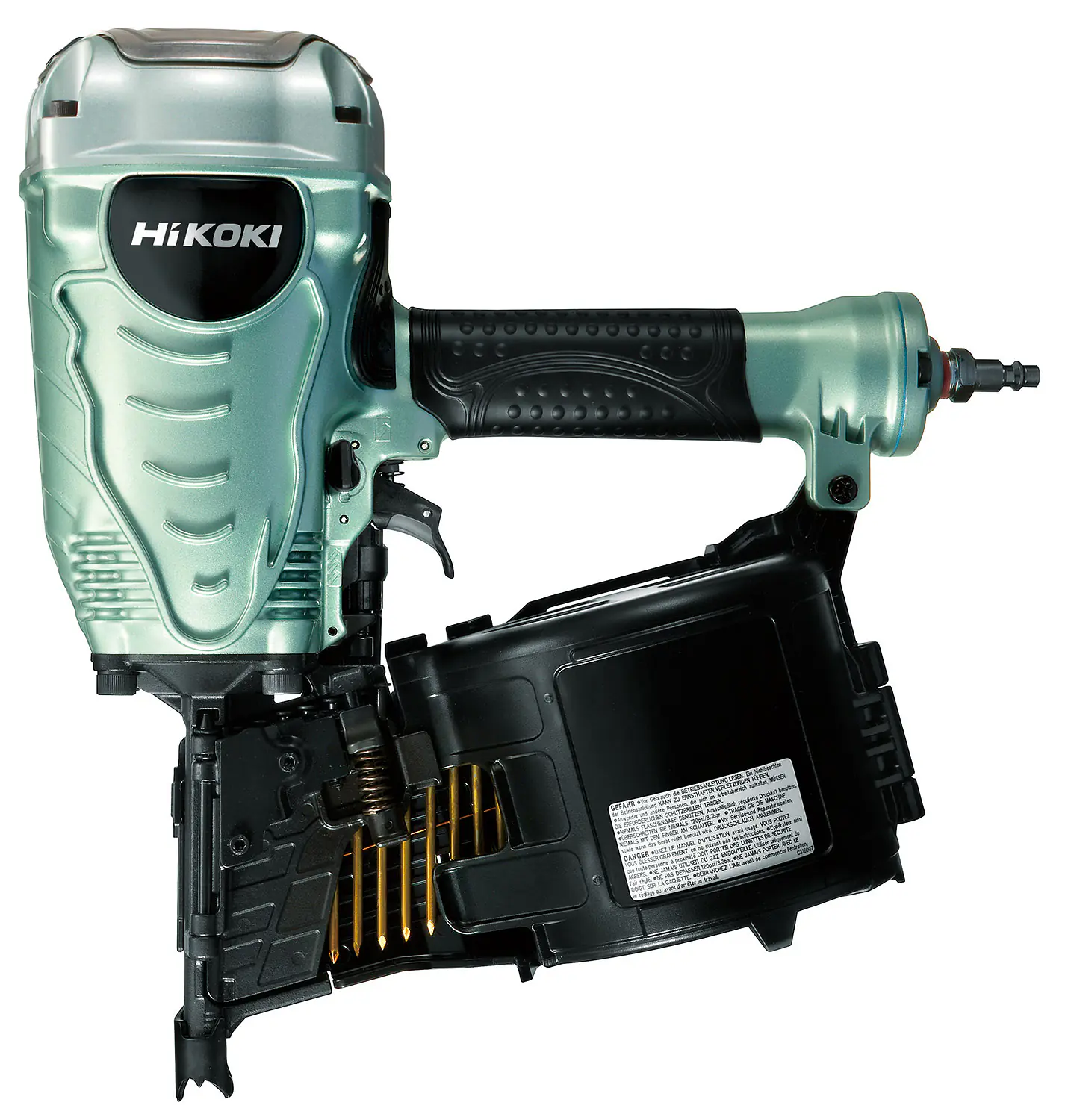

NV90AG-NAILER
Regular price
₹34,190.00
NV90AG-NAILER
Regular price
₹34,190.00
DESCRIPTION
Features:
* NV90AG - 90mm or 3.5" coil nailer is compact in size and can be used in narrow working areas
* Nailing change technique or mechanism: Single sequential actuation and contact actuation
* Suited for wire collated nails
* Top loading pop-out option is made easy
* Tool-less adjustment in driving depth
* Elastomer-layered trigger for comfort
Specifications Overview:
| Driving System | Piston Reciprocating Action |
|---|---|
| Operating Pressure Range in | 5 - 8.5 kgf/cm2 |
| Gauge Pressure | (70 - 120 psi) |
| Driving Speed | 3 nails/sec. |
| Loading capacity | 200 - 300 nails |
| Air Inlet | NPT 3/8 Thread |
| Dimensions (L x H) | 336 mm x 332 mm (13-1/4" x 13-1/16") |
| Weight | 3.5 kg (7.7 lbs.) |
| Standard Accessories | Eye Protector |
Applicable nail sizes - mm(in.)
 |
L | 45(1-3/4) - 90(3-1/2) |
|---|---|---|
| d | 2.5(.099) - 3.3(.131) | |
| D | 6.0(.236) - 7.2(.283) |
